SONANCE PRO SERIES PENDANT SPEAKER AND ACCESSORIES
Key Features
-
Class-leading sensitivity & sonic performance
-
Heavy duty voice coil for longevity and reliability
-
Magnetic grille retention allows for fast installation and removal, complemented by a front-mounted finger-adjustable selector tap.
-
Integrated top cover conceals connectors and hanging hardware for a sleek appearance.
-
Ideal for various environments including boardrooms, retail spaces, restaurants, galleries, casinos, and educational facilities.
-
Engineered for consistent voicing across the product range.
PS-P43T
PS-P63T
PS-P83T
PS-P83WT
PS-P43T - Pendant mount
Professional Series
The Sonance PS-P43T pendant speaker features a sleek, lighting-inspired design with a one-piece grille for seamless aesthetics. It includes a concealed top cover for hardware and wiring. A high-excursion 4" woofer and pivoting 1" tweeter ensure accurate sound. UL 1480 and UL 2239 certifications ensure safety and reliability.
R11490
PS-P63T
Professional Series
The Sonance PS-P63T pendant speaker features a sleek, lighting-inspired design with a one-piece grille for seamless aesthetics. Its integrated top cover conceals hardware and wiring. A high-excursion 6.5" woofer and pivoting 1" tweeter ensure accurate sound. UL 1480 and UL 2239 certifications guarantee safety and reliable performance.
R13990
PS-P83T
Professional Series
The Sonance PS-P83T pendant speaker features a minimalistic design with a one-piece grille for consistent sight lines. Its integrated top cover hides hardware and wiring. A high-excursion 8" woofer and pivoting 1" tweeter ensure accurate sound. UL 1480 and UL 2239 certifications ensure safety and reliable performance.
R21490
PS-P83WT
Professional Series
The Sonance PS-P83WT pendant woofer features a minimalistic design with a one-piece grille for consistent aesthetics. Its integrated top cover hides hardware and wiring. An ultra-high-excursion 8" polypropylene woofer provides powerful low bass. Certified for UL 1480 and UL 2239, ensuring safety and reliable performance.
R24490

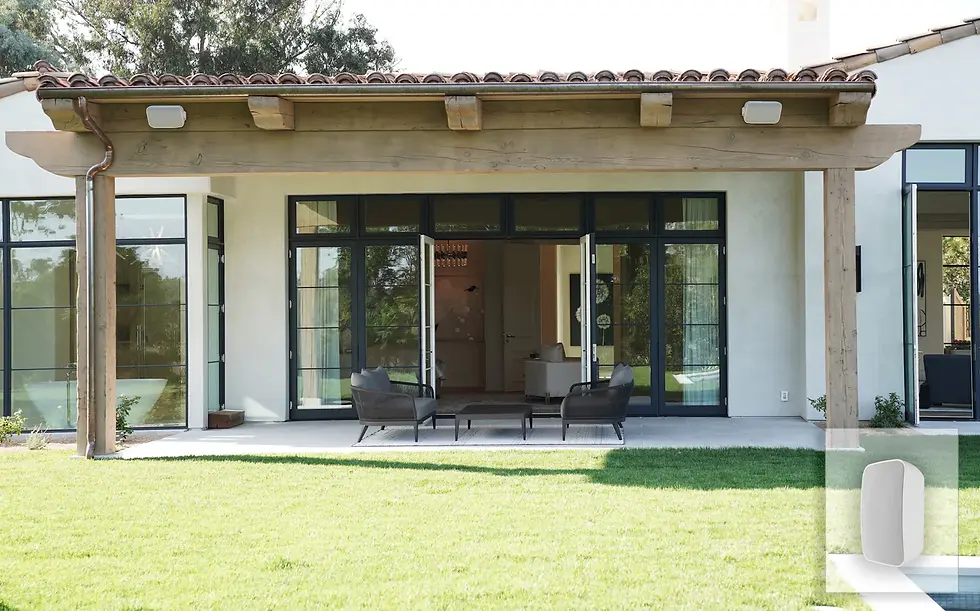

OUTDOOR MARINER MX SPEAKERS & ACCESSORIES
Sonance Mariner MX speakers feature sleek, surface-mounted designs with Sinusoidal Textured Waveguide technology and VX transducers to deliver balanced sound clarity outdoors, supported by innovative mounting systems.
Key Features
-
VX Transducer Technology: Delivers exceptional audio performance with crisp fidelity.
-
Sinusoidal Textured Waveguide: Provides wide dispersion for even audio coverage.
-
Grille Clip System: Securely retains grilles against temperature fluctuations and elements.
-
Minimalistic surface-mounted design complements any outdoor space.
-
IP66 Outdoor Rating: Resilient against water, dust, and harsh environments.
-
FastMount Bracket System: Easy installation with secure, precise speaker positioning.
R15990
Mariner MX52
Mariner
Mariner MX52 5.25" surface mounted outdoor speaker. Available in black or white.
​
Key Features
-
Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
-
VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
-
Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
-
FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
​
SKU | Color - 93604 (Black), 93605 (White)
Speaker Tweeter - .75" (19mm) cloth dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer - 5.25" (130mm) textured polypropylene cone, rubber surround
Frequency Response (+/- 3db) - 65Hz - 20kHz
Power Handling (RMS) - 5 watts minimum; 90 watts maximum
Sensitivity - 87dB (2.83V/1m)
Nominal Impedance (Ohms) - 8 Ohms
Dispersion - Sinusoidal Textured Waveguide
Dimensions (WxHxD)
6.36" x 10.08" x 5.68" (161.54mm x 256.03mm x 144.27mm)
Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV
R19990
Mariner MX56
Mariner
Mariner MX56 5.25" surface mounted outdoor speaker. Available in black or white.
​
Key Features
-
Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
-
VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
-
Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
-
FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
​
SKU | Color - 93606 (Black), 93607 (White)
Speaker Tweeter - .75" (19mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer -= .25" (130mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db) - 60Hz - 40kHz
Power Handling (RMS) - 5 watts minimum; 100 watts maximum
Sensitivity - 88dB (2.83V/1m)
Nominal Impedance (Ohms) - 8 Ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
6.36" x 10.08" x 5.68" (161.54mm x 256.03mm x 144.27mm)
Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV
R23990
Mariner MX62
Mariner
Mariner MX62 6.5" surface mounted outdoor speaker with Single Stereo® Technology. Available in black or white.
​
Key Features
-
Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
-
VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
-
Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
-
FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
​
SKU | Color - 93608 (Black), 93609 (White)
Speaker Tweeter - 1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer - 6.5" (165mm) textured polypropylene cone, rubber surround
Frequency Response (+/- 3db) - 55Hz - 20kHz
Power Handling (RMS) - 5 watts minimum; 125 watts maximum
Sensitivity - 89dB (2.83V/1m)
Nominal Impedance (Ohms)
8 Ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
7.51" x 12.14" x 6.86" (190.75mm x 308.36mm x 174.24mm)
Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV
R29990
Mariner MX66
Mariner
Mariner MX66 6.5" surface mounted outdoor speaker. Available in black or white.
​
Key Features
-
Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
-
VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
-
Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
-
FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
​
SKU | Color - 93616 (Black), 93617 (White)
Speaker Tweeter - 1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber, dual voice coil
Speaker Woofer - 6.5" (165mm) textured polypropylene cone, rubber surround, dual voice coil
Frequency Response (+/- 3db) - 55Hz - 20kHz
Power Handling (RMS) - 5 watts minimum; 125 watts maximum
Sensitivity - 89dB (2.83V/1m)
Nominal Impedance (Ohms)
8 Ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
7.51" x 12.14" x 6.86" (190.75mm x 308.36mm x 174.24mm)
Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV
R39990
Mariner MX86
Mariner
Mariner MX86 8" surface mounted outdoor speaker. Available in black or white.
​
Key Features
-
Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
-
VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
-
Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
-
FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
​
SKU | Color - 93612 (Black), 93613 (White)
Speaker Tweeter - 1.2" (30mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer - 8" (203mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db) - 45Hz - 20kHz
Power Handling (RMS) - 5 watts minimum; 150 watts maximum
Sensitivity - 91dB (2.83V/1m)
Nominal Impedance (Ohms)
8 Ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
9.01" x 14.02" x 8.58" (228.85mm x 356.11mm x 217.93mm)
Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV

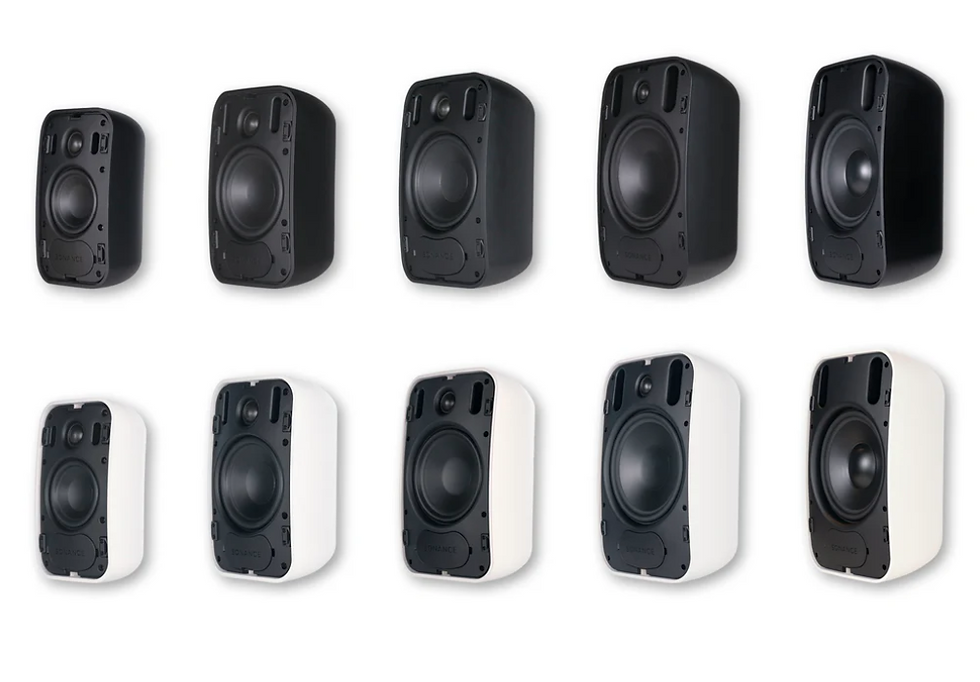

SONANCE PRO SERIES SURFACE MOUNT SPEAKER AND ACCESSORIES
Key Features
-
Class-leading sensitivity & sonic performance, providing clear and powerful audio across various environments.
-
Delivers consistent sound quality even at challenging angles, ensuring an immersive listening experience throughout the space.
-
Magnetic grille retention allows for fast installation and removal, complemented by a front-mounted finger-adjustable selector tap.
-
Offers uncompromised performance on 70V/100V lines, enabling efficient audio distribution in larger installations.
-
FastMount® Bracket System: Simplifies installation with a user-friendly design that allows for quick and secure mounting in various locations.
-
Available in black or white finish that can be painted to blend with any decor, featuring a corrosion-resistant powder-coated aluminum grille for durability.
PS-S43T MKII
Professional Series
The Sonance PS-S43T MKII two-way surface-mount loudspeaker features a high-excursion 4.5" woofer, and 1" tweeter for clean, accurate sound. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480A and UL2239 certifications ensure durability and safety.
R8490
PS-S53T MKII
Professional Series
The Sonance PS-S53T MKII two-way surface-mount loudspeaker features a high-excursion 5.25" woofer, and 1" tweeter for clean, accurate sound. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480A and UL2239 certifications ensure durability and safety.
R9990
PS-S63T MKII
Professional Series
The Sonance PS-S63T MKII two-way surface-mount loudspeaker features a high-excursion 6.5" woofer, and 1" tweeter for clean, accurate sound. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480A and UL2239 certifications ensure durability and safety.
R12990
PS-S83T MKII
Professional Series
The Sonance PS-S83T MKII two-way surface-mount loudspeaker features a high-excursion 8" woofer, and 1" tweeter for clean, accurate sound. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480A and UL2239 certifications ensure durability and safety.
R19490
PS-S83WT MKII
Professional Series
The Sonance PS-S83WT MKII surface-mount woofer features an ultra-high-excursion 8" woofer for powerful bass. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480A and UL2239 certifications ensure durability and safety.
R23490
IN CEILING / ATMOS
SONANCE PRO SERIES IN-CEILING SPEAKER AND ACCESSORIES
​
Key Features
-
Class-leading sensitivity and sonic quality with a full-fidelity transformer.
-
Clean minimalistic aesthetic with optional black grilles available in round or square formats.
-
Magnetic grille retention allows for quick installation and removal.
-
Ensures consistent audio experience across the entire product range.
-
Ideal for various environments including boardrooms, retail spaces, restaurants, galleries, casinos, houses of worship, and educational facilities.
-
The smallest in-class design ensures seamless integration into any space without compromising on performance or aesthetic appeal.
PS-C41RT
Professional Series
The Sonance PS-C41RT In-Ceiling Speaker features a magnetically secured, bezel-less grille for easy installation and painting. Optional black and square grille adapters allow for customizable aesthetics. With a 4" polypropylene woofer for deep bass and a 0.75" soft dome tweeter for clear highs, it ensures exceptional audio performance.
R5990
PS-C43RT
Professional Series
The Sonance PS-C43RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion woofer, and pivoting tweeter for precise sound coverage. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliability in installations.
R7990
PS-C63RT
Professional Series
The Sonance PS-C63RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound coverage. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliable performance.
HF Driver -
​
1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver - 6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
49Hz-25kHz
Frequency Response (+/- 3db)
65Hz - 20kHz
Power Handling (RMS) - 120W program, 60W pink noise
Sensitivity - 91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms) - 8 Ohms
R10490
PS-C43RT Low Profileeries
The Sonance PS-C43RTLP Low Profile In-Ceiling Speaker is designed for tight spaces, fitting beneath HVAC ducts or in 2'x4' stud bays. Its shallow 3.43" design features a magnetically secured bezel-less grille for easy painting. With a 4" woofer and pivoting 1" tweeter, it delivers exceptional audio performance.
​
HF Driver - 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver - 4" (100mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db) - 57Hz - 25kHz
Frequency Response (+/- 3db) - 75Hz - 20kHz
Power Handling (RMS) - 60W program, 30W pink noise
Sensitivity
87dB (2.83V/1m)
Rated Maximum SPL
105dB @ 1 meter (3.3 feet), 110dB peak
Nominal Impedance (Ohms)
8 Ohms
R10490
PS-C61RT
Professional Series
The Sonance PS-C61RT In-Ceiling Speaker features a bezel-less, magnetically secured grille for easy installation. It includes a 6.5" woofer for deep bass and a .75" tweeter for clear highs. With a UL94V-0 enclosure, integrated cable management, and multiple certifications, it ensures safety and seamless aesthetic integration.
HF Driver - 0.75" (19mm) Cloth Dome, Ferrofluid Cooled
LF Driver - 6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db) - 60Hz-25khz
Frequency Response (+/- 3db) - 83Hz - 20kHz
Power Handling (RMS) - 100W program, 50W pink noise
Sensitivity
91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms)
8 Ohms
R7990
PS-C63RT
Professional Series
The Sonance PS-C63RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound coverage. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliable performance.
HF Driver -
​
1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver - 6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
49Hz-25kHz
Frequency Response (+/- 3db)
65Hz - 20kHz
Power Handling (RMS) - 120W program, 60W pink noise
Sensitivity - 91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms) - 8 Ohms
R10490
PS-C63RTLP
Professional Series
The Sonance PS-C63RTLP in-ceiling speaker has a shallow 4.37" design for tight spaces, a bezel-less magnetic grille, optional square adapter, high-excursion 6.5" woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes knock-outs, a removable Euroblock connector, and seismic attachment. It is UL 1480 and UL 2043 certified.
​
HF Driver - 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver - 6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db) - 49Hz-25kHz
Frequency Response (+/- 3db) - 65Hz - 20kHz
Power Handling (RMS) - 120W program, 60W pink noise
Sensitivity
91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms)
8 Ohms
